FILTRAIR FF-560 GX™
DIFFUSION MEDIA
FF-560 GX Brochure.
CC-600 G Brochure.
560 Series Brochure. |

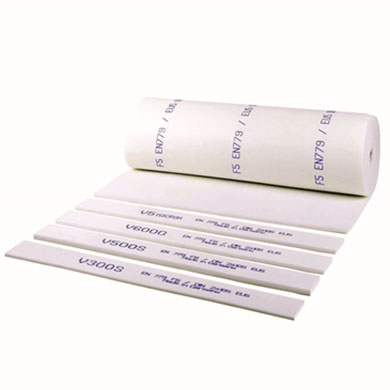

Filtrair’s FF-560 GX Diffusion Media are
synthetic fiber-based nonwoven filter products developed and manufactured
at Filtrair’s own high-tech production facility. The filter media are
constructed from selected high performance fine denier fibers in a gradient
density multi-layering technique to ensure high depth loading with optimal
lowest pressure drop performance.
These media are thermally bonded and
impregnated in full depth with a proprietary adhesive coating to prevent any
release of fibers and migration of paint-damaging particles larger than 7
microns due to vibration of the system, even under varying temperature
conditions. The clean air side is particularly dense and reinforced with a
supporting woven open-mesh scrim. This results in a long filter life, high
fractional efficiency, prevention of particle migration and reduced energy
and maintenance costs.
 | Filtrair
FF-560 GX™ is the most advanced downdraft media offered today |
| Gradient density structure ensures
air distribution throughout the spray booth. |
| Full
penetration of special adhesive
prevents any release of fibers and migration
of particles larger than 5 microns |
| Approved by major
automotive manufacturers
|
|
|
ANDREAE STANDARD
FILTER
|
The Andreae Standard filter is made of two pleated and perforated cardboard walls glued by their edges.
The result of this unique design engineered by Andreae is the best disposable filter using the inertia
separation principle.
The inertia separation principle of the Andreae Standard filter is the key to capturing the overspray of
paint, glue, resin, fiberglass, tar, Teflon, oil, grease, or any other airborne liquid particle, efficiently.
|
Lasts 3 to 5 times longer than fiberglass filters. |
|
Paint particles are captured and retained outside the air stream in the holding pockets. |
|
Captures 98.1% of High Solids Baking Enamel and holds 4 lbs. per sq. ft. of overspray. |
Andreae Advantage Facts
Andreae Standard Filter
Brochure
Accordian Filter Test Report
|
The Andreae HE+ filter is made of two pleated and perforated cardboard walls glued by their edges with an
additional thin layer of polyester on the rear face.
|
Lasts 2 to 4 times longer than fiberglass filters. |
|
Paint particles are captured and retained outside the air stream in the holding pockets and
the thin polyester layer. |
|
Captures 99.8% of high solids and holds 5.3 lbs. per sq. ft. of overspray. |
Andreae Advantage Facts
Andreae HE Filter Brochure
Accordian Filter Test Report |
ANDREAE HE+ FILTER
|
|
ANDREAE
EVOLUTION FILTER
|
The Andreae Evolution filter is manufactured to fit any existing 20" x 20" or
25" x 25" filter frame without costly modifications. Installation is as simple as expanding the
filter and placing in the frame, no clips or support grid are necessary. Our built in frame provides a wedge
to hold the filter firmly in place.
|
Lasts 3 to 5 times longer than fiberglass filters. |
|
Paint particles are captured and retained outside the air stream in the holding pockets. |
|
Captures 98.1% of High Solids Baking Enamel and holds 4 lbs. per sq. ft. of overspray. |
Andreae Advantage Facts
Andreae Standard Filter
Brochure
Accordian Filter Test Report |
|
The
Paint Pocket excels in arresting both liquid and powder coating overspray.
Paint Pocket features a unique
design that holds up to 5 times more paint than conventional overspray
collectors. The three-dimensional "pockets" embedded in the front face of the
filter more than double the surface area allowing the arrestor to capture and
hold large quantities of paint overspray.
| High paint holding
capacity-reduction of filter change outs |
| 99.84 arrestance efficiency |
| low run off |
Paint Pockets Filter
Test Report |
PAINT
POCKETS PAINT ARRESTOR PADS
 |
|

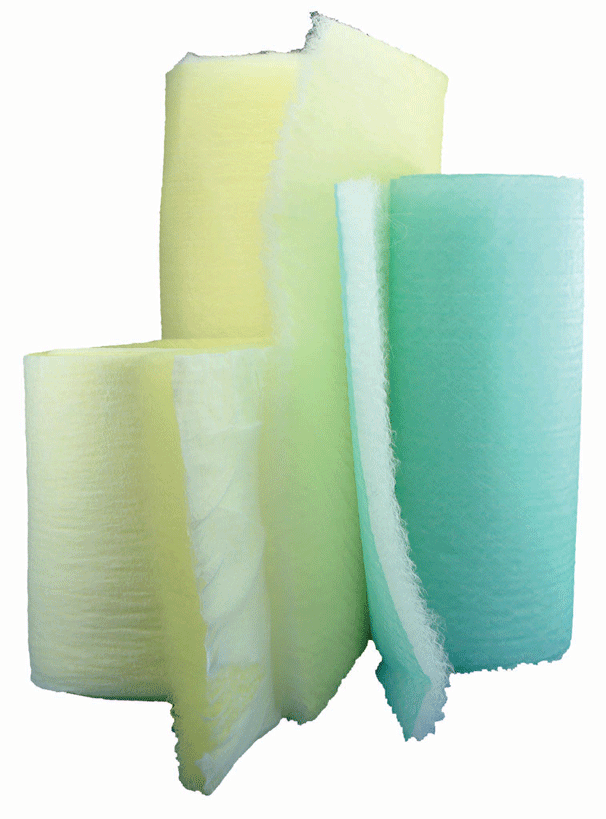

22 GRAM
YELLOW &
WHITE HEAVY DUTY FIBERGLASS FILTERS
|
22 Gram Yellow &
White Heavy Duty Fiberglass Filter Media is our best fiberglass filter.
Available in rolls and pads, we have a size to fit for you.
|
Fiberglass Media
is manufactured in a quality heavy duty 22 gram weight |
|
Media is 2-1/2
inches thick for superb paint collection. |
|
Media is wrapped
in plastic and shipped in heavy-duty cartons. |
|
All Rolls are
300 feet in length |
|
All Pads are cut
to common dimensions to fit your application |
|
UL Class 2 |
22 Gram Fiberglass Filter Test Report
|
|

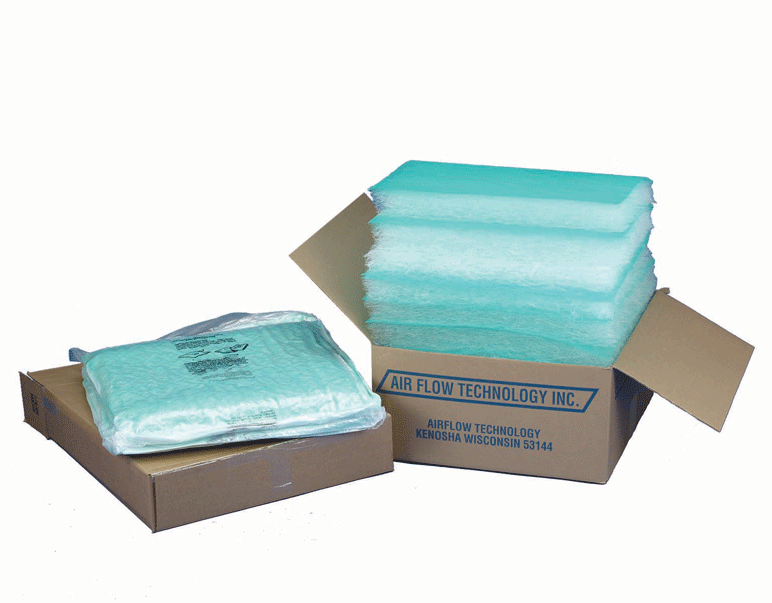

15 Gram Green &
White Economy Fiberglass Filter Media is our most economical fiberglass filter.
Available in rolls and pads, we have a size to fit for you.
|
Fiberglass Media
is manufactured in a quality 15 gram weight |
|
Media is 2-1/2
inches thick for superb paint collection. |
|
Media is wrapped
in plastic and shipped in heavy-duty cartons. |
|
All Rolls are
300 feet in length |
|
All Pads are cut
to common dimensions to fit your application |
|
UL Class 2 |
15 Gram Fiberglass Filter Test Report
|
15 GRAM GREEN
& WHITE ECONOMY FIBERGLASS FILTERS
|
The CC50 cube is a high quality choice for those who are economy minded.
| High paint holding capacity |
| Low resistance
|
| This filter is constructed of a single ply of environmentally protective polyester
media |
| An economical choice for paint overspray collection
|
| Test results are based on 62% high solid paint
|
| U.L. Class 2 |
CC50 Brochure.
|
CC50TM
PAINT OVERSPRAY CUBES
|
|
CC100TM
PAINT OVERSPRAY CUBES
|
A quality overspray filter that has very low initial resistance. This cube should be pre-filtered by
Series 99 paint overspray media. The highest quality self-sealing paint overspray cube in the industry.
An excellent choice for paint overspray collection.
CC100 Brochure.
|
This powder coating cube is the finest in the industry. The PC 2020™ cube held 9.47 lbs. at first
loading. It is constructed of a 1" environmentally protective layer and very dense 65% efficient second
layer.
| Two layer heavy duty construction |
| Self sealing type or header type with gaskets available
|
| Extremely high holding capacity
|
| Two pocket expanded surface area
|
| Test results on this cube available upon request
|
| UL Class 2 |
|
PC 2020TM
POWDER COATING CUBE
|
|
SERIES 635
3 PLY PANEL AND LINK
FILTERS
 |
| Duratough polyester is non-allergic
|
| Unaffected by mold and humidity
|
| All filters gasketed to eliminate bypass |
Series 635 Brochure.
|
| Two layer heavy duty construction
|
| Self sealing type or header type with gaskets available
|
| Extremely high holding capacity
|
| Two pocket expanded surface area
|
| Test results on this cube available upon request
|
| UL Class 2 |
|
15/40 DURA-TOUGH CUBE
|
|
POLY PAKTM
HIGH
EFFICIENCY BAG FILTERS
|
| 45% efficiency for high holding capacity
|
| Unaffected by mold and humidity
|
| Anti-microbial media
|
| 100% heat sealed perimeter for total leak proof construction
|
| UL Class 2 |
|
The Dura-Lok™ Tacky Panel is premium filter designed for velocities of 300 to 400 FPM. This filter
inhibits growth of mold, mildew and bacteria through the use of Sporax™, an anti-microbial agent. This
filter is 90% efficient at 10 microns, and is an excellent choice for quality air filtration.
| Non-migrating wet tack |
| Unaffected by mold and humidity
|
| Heat sealed construction
|
| All filters gasketed to eliminate bypass
|
| This filter is constructed of a 1/2" dry first layer and a 1" wet tack
second layer |
| UL Class 2 |
|
SERIES 66
DURA-LOK FILTERS
|
SERIES 67
ANTI-MICROBIAL FILTERS
|
The Series 67™ Tacky Panel is a premium filter treated with Sporax™, An anti-microbial agent which
eliminates the possibility of organisms on its surface area. Sporax™ controls mildew, mold, fungi, yeast and
bacteria. Series 67™ filters pass ASTMC-665 and ASTM D-202D tests.
| Non-migrating super tack |
| Unaffected by mold and humidity
|
| Heat sealed construction
|
| All filters gasketed to eliminate bypass
|
| This filter is constructed of a 1/2" dry first layer and a 1" super tack
second layer |
| This filter contains Amical anti-microbial agent
|
| UL Class 2 |
|
