How The Paint Mixing Room Works:

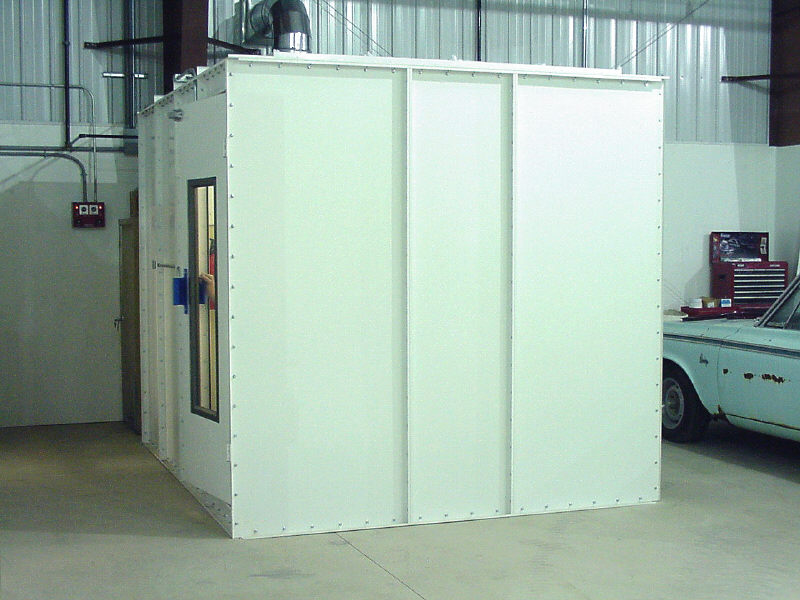

The Technocure Paint Mixing Room is designed to create the ideal environment for storing, mixing and matching paint. Air flows in through the filtered air intake plenum (located in the ceiling at one end of the room), downward through the work area and into the exhaust chamber located in the lower opposite end. Filtered exhaust air is drawn through the exhaust plenum and is discharged upward into the atmosphere through the exhaust stack. Bright full room illumination is provided by four tube, 48", 32 watt fluorescent light fixtures in the ceiling panels. Each is sealed behind clear tempered safety glass. The Paint Mix Room is constructed from 18 gauge galvanized steel panels, prefabricated and powder coated white. The personnel access door is pre-hung in heavy gauge galvanized steel frame for easy installation. A Brixon latch is provided for the door opening. One tempered glass observation window is standard in all paint mix rooms. Technocure has developed the consistent paint mixing environment.

Specifications:

Booth Shell 8' 4 or 10' 4" or 12' 4" long x 8' 4" wide x 8' 2" high (O.D.) 18 gauge, galvanized steel panels, prefabricated. Floor channels secure the booth to the floor. (Other Sizes Available)
Personnel Door 30" wide x 84" high personnel access door is pre-hung in heavy gauge galvanized frames for easy installation. Brixon latches are provided for each door opening. One observation window is standard in all paint mix rooms.
Lighting Bright full room illumination is provided by 1 four tube, 48", 32 watt fluorescent light fixture in the ceiling panel. it is sealed behind clear tempered safety glass. All fixtures are UL listed and approved for their intended use and placement. Light tubes are not furnished with the fixtures.
Filtration System Intake side: 4 - 20" x 20" filters are located in the ceiling panels.

Exhaust side: 2 - 20" x 20" Spun Glass Fiber Filters are located in the lower side of the booth, opposite the intake side. All filters can be replaced simply.

Fan

12 inch precision balanced, spark resistant aluminum fan blades. Fan can deliver up to 1,920 cu. ft. per minute each @ .5" Static Pressure, with low operating noise level.

Fan Motor One 1/2 hp 208-230/480 volt, 3 phase, high efficiency TFEC (optional single phase available).
Finish "Porcelain like" Polyurethane and Polyester Premium White Powder Coating.
Air-Make-Up Unit See separate product sheet.

Options:

bullet

Add additional light fixtures.

bullet

Add an additional Personnel Door.

bullet

Add View Windows in the walls, great for classroom environments.

bullet

With or without White Powder Coating.

bullet

Exhaust stacking with roof flashing.

bullet

Size/Configuration Modification.

Paint Mix Rooms comply with all NEC, OSHA and NFPA regulations.

All hardware, filters and sealants needed for installation are included. The control panel and other electrical components are to be supplied by others.
